35R Radio 28RPM 120W AC 120V Tube Motor Roller Shutter

Product Categories
Shenzhen songrui electric door & window systems Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

35R Radio 28RPM 120W AC 120V Tube Motor Roller Shutter

Brand Name : SONGRUI

Model Number : YX35R-3/28

Certification : CE

Place of Origin : China

MOQ : 50 SETS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 Set/Sets per Month

Delivery Time : 5-8 WORK DAYS

Product Name : Tubular Motor

Type : YX35R-3/28

Power Supply : AC 220V/50Hz; AC 120V/60Hz

Rated Torque (N.m) : 3

Rated Speed (rpm) : 28

Rated Power (W) : 120W

Contact Now

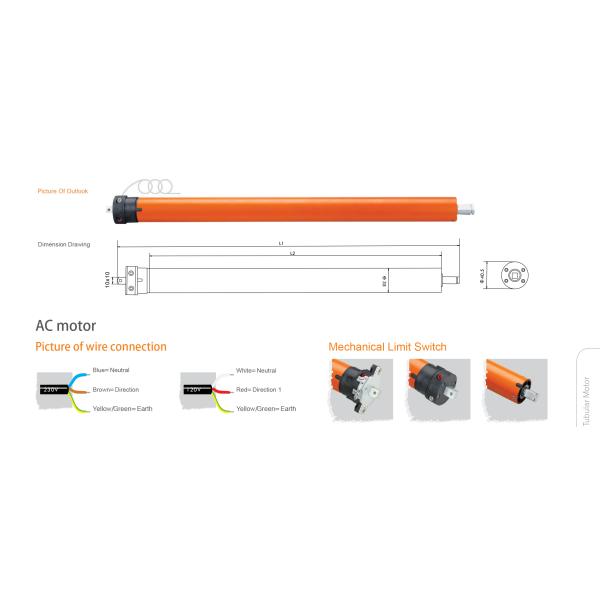

35R Radio Type-Mechanical Limit +Build-In Receiver Rolling Door Motor

Detailed product description:

1. Radio Type-Mechanical Limit +Build-In Receiver.

2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.

Main technical parameters:

YS35R

10N.m/20 Kg

AC230V 50Hz

Type YX35R-3/28 YX35R-6/17 YX35R-6/28 YX35R-10/17 YX35R-13/12
Rated Torque (N.m) 3 6 6 10 13
Rated Speed (rpm) 28 17 28 17 12
Rated Power (W) 120 120 140 140 150
Rated Current (A) 0.52 0.52 0.60 0.60 0.65
Running Time (min) 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) 39 39 39 39 39
L1/L2(mm) 622/550 622/550 622/550 622/550 622/550

YS35R

10N.m/20 Kg

AC120V 60Hz

Type YX35R-3/33 YX35R-6/20 YX35R-6/33 YX35R-10/20 YX35R-13/14
Rated Torque (N.m) 3 6 6 10 13
Rated Speed (rpm) 33 20 33 20 14
Rated Power (W) 102 102 105 105 110
Rated Current (A) 0.86 0.86 0.88 0.88 0.92
Running Time (min) 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) 39 39 39 39 39
L1/L2(mm) 622/550 622/550 622/550 622/550 622/550

Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.35R Radio 28RPM 120W AC 120V Tube Motor Roller Shutter
